PVC: Double PCV-coated polyester textile,flame retardant to NFPA701,f-13101 B1 M2
Connector: Strong hot-dip galvanized steel
Temperture allowed: -30 degree Celsius ) to +70 degree Celsius
Wind load Max 80 km/h, 0.3kn/sqm
Span: 3-10M
Length: 3-10M
| Span | Eave high | Total high | Main plofile(mm) | Bay distance(m) | Roof slope(degree) | Roof and side PVC color/ option |
| 3M | 2.4M | 4.1M | 65*65 | 3 | / | 850g,650g,550g/sqm, transparent,colorful and white etc; PVC-coated polyester textile,flame retardant to DIN 4102 B1,M2,CFM. |
| 4M | 2.4M | 4.7M | 65*65 | 4 | / | |
| 5M | 2.7M | 5.4M | 65*65 | 5 | / | |
| 6M | 2.7M | 6M | 65*65 | 6 | / | |
| 8M | 2.7M | 5.5M | 121*68 | 8 | / | |
| 10M | 2.7M | 6.6M | 121*68 | 10 | / |

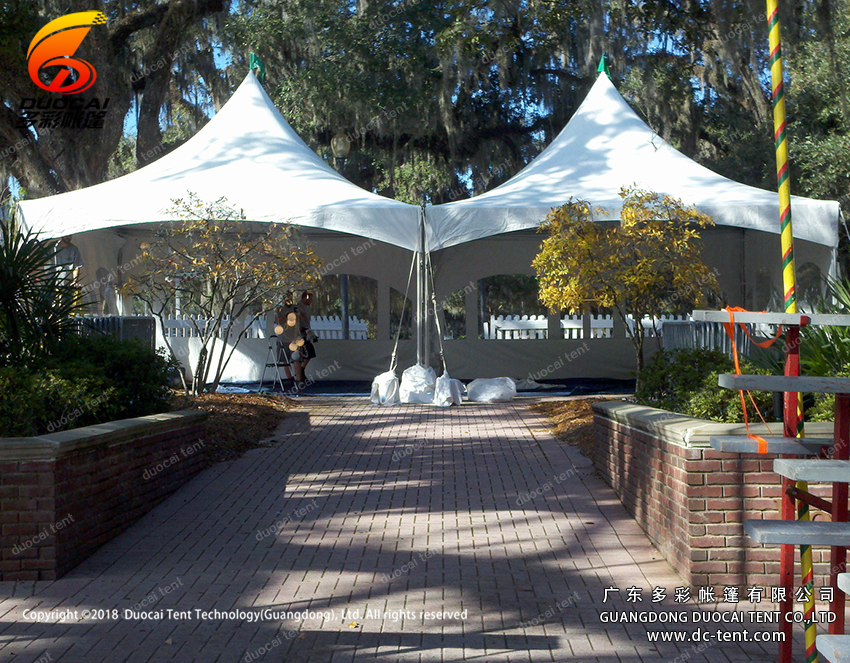

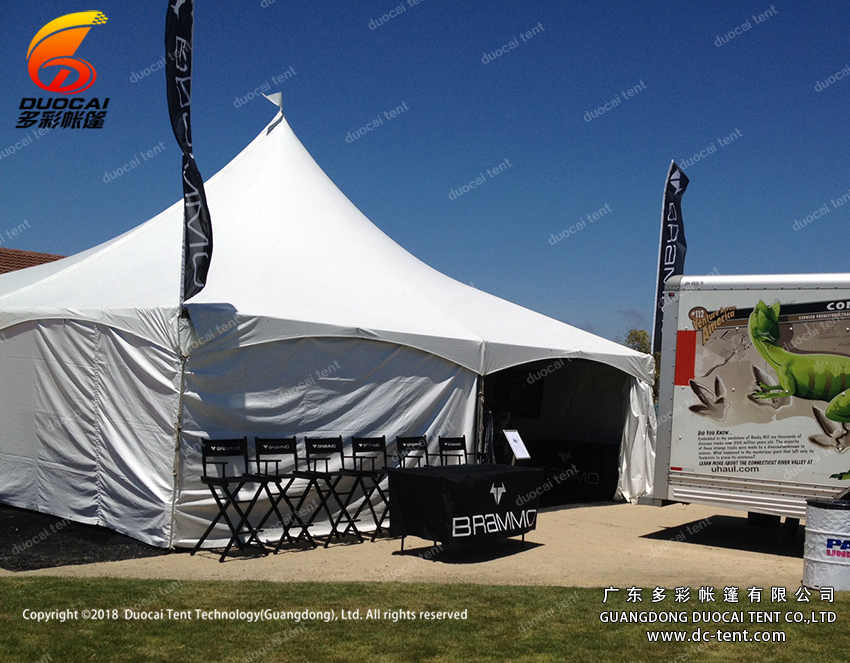

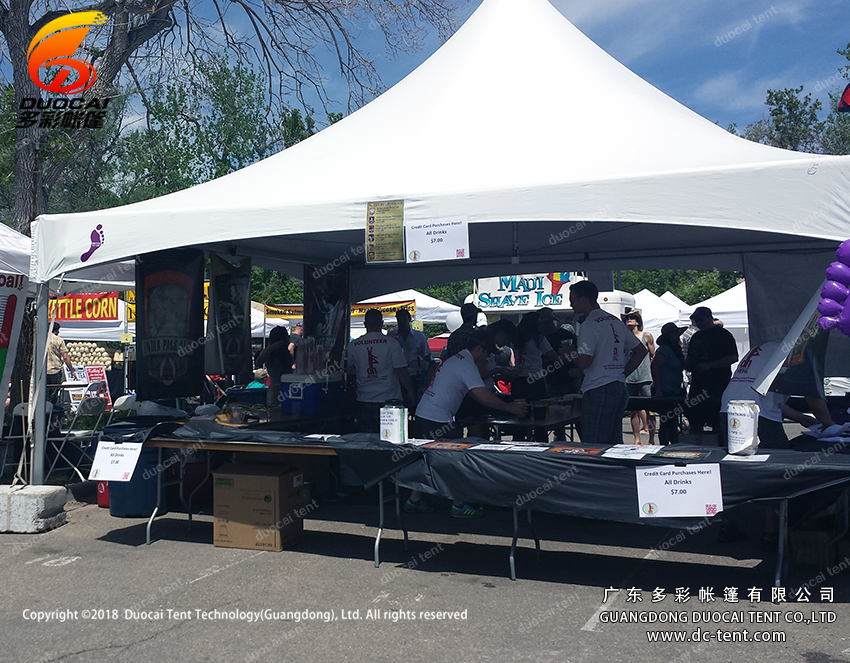

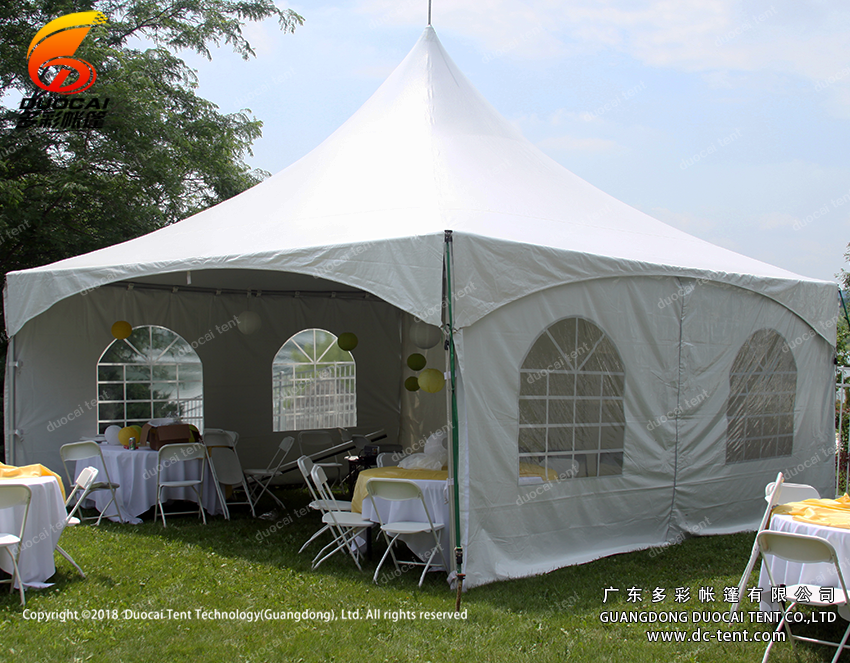

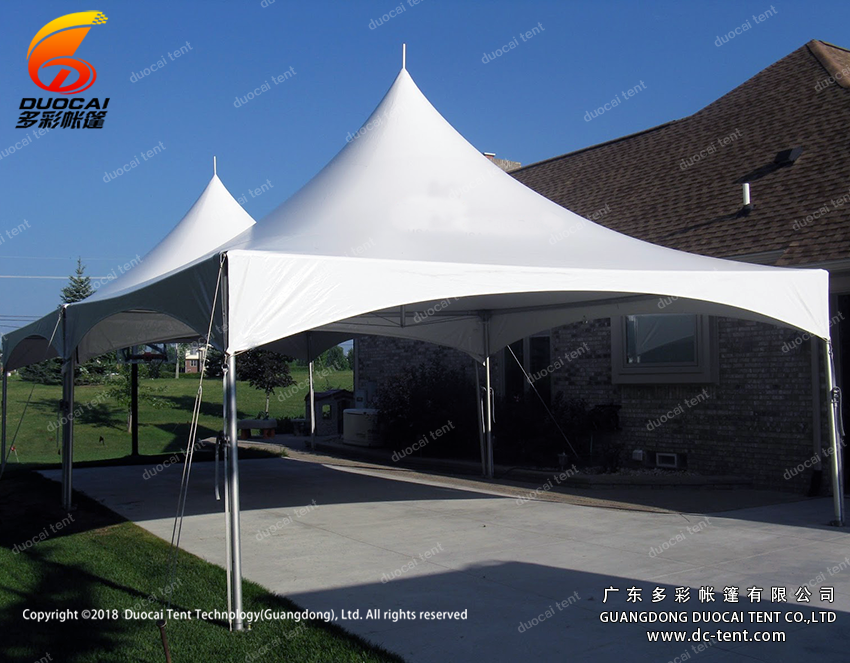

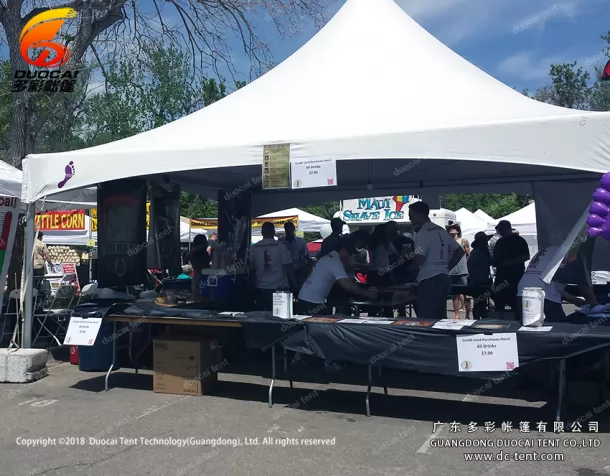

The American pole tent has dimensions of 3 x 3 meters, 4 x 4 meters, 5 x 5 meters and 6 x 6 meters with a side height of 2.5 meters and a three-groove 65 x 65 x 2.5 mm alloy pipe Do bracket, anti-wind speed 80 km / h (wind load 0.3 kN / sq m). Fabric with 850 grams of light shade PVC fabric, the use of buckle to the spire fabric fixed four columns. pole tents have a variety of options to choose from, such as: glass walls, glass doors, wood floors, anchor and ceiling interiors. In addition to the use of cone tents alone, but also can be connected to form a larger area with a drain, forming a unique shape, more exciting in outdoor activities.
Main features: easy to disassemble, easy to install, ecoanomical pole tent.
Q: What size tent is necessary for your special event?
A: A person must first determine tent usage. If a tent is being used for dining purposes and round tables are being used allow 10-12 square feet per person. If banquet style tables are being used allow 8-10 square feet per person.If the purpose is for cocktail service allow five to six square feet per person. Contact us for all your specific questions and more information on tent types.
Q: Can you print our logos on tent?
A: Yes.Customized logos can be print on the tent fabric according to your requirements.
Q: Is that factory price?
A: Yes.We assure you all prices are based on factory.
Q: Does your tent be able to install repeatedly?
A: Our tents can be assembled and dismantled and repeatedly with small transportation size.
Q: What documents are available?
A: A full range documents including structural drawings,packing list,installation manual can be provided.Moreover,customs declaration is provided.We provide one-stop service for you.
Q: Has your tent product been certified?
A: Yes. Our tent product has passed the engineering tests. Besides, the PVC fabric used for roof covers and sidewalls has passed the fire tests and the flame retardant test base on the standard of German.
Q: How long is the warranty period?
A: Guarantee one year. During the warranty period, we shall repair or replace the damaged part accordingly.
