Profile: Hard pressed extruded Aluminium 6061/T6(15HW)
PVC: Double PVC-coated polyester textile, flame retardant to NFPA701, f-13101 B1 M2
Connector: Strong hot-dip galvanized steel
Temperature allowed: -30 degree Celsius ) to +70 degree Celsius
Wind load Max 80 km/h, 0.3kn/sqm
Span: 3-10M
Length: 3-10M
Span | Eave height | Total height | Main profile | Bay distance | Roof and side PVC color/option |
3M | 2.4M | 4.1M | 65*65mm | 3M | 850g, 650g, 550g/sqm, transparent,colorful and white etc; PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2, CFM. |
4M | 2.4M | 4.7M | 65*65mm | 4M | |
5M | 2.7M | 5.4M | 65*65mm | 5M | |
6M | 2.7M | 6M | 65*65mm | 6M | |
8M | 2.8M | 5.5M | 121*68mm | 8M | |
10M | 2.8M | 6.6M | 121*68mm | 10M |

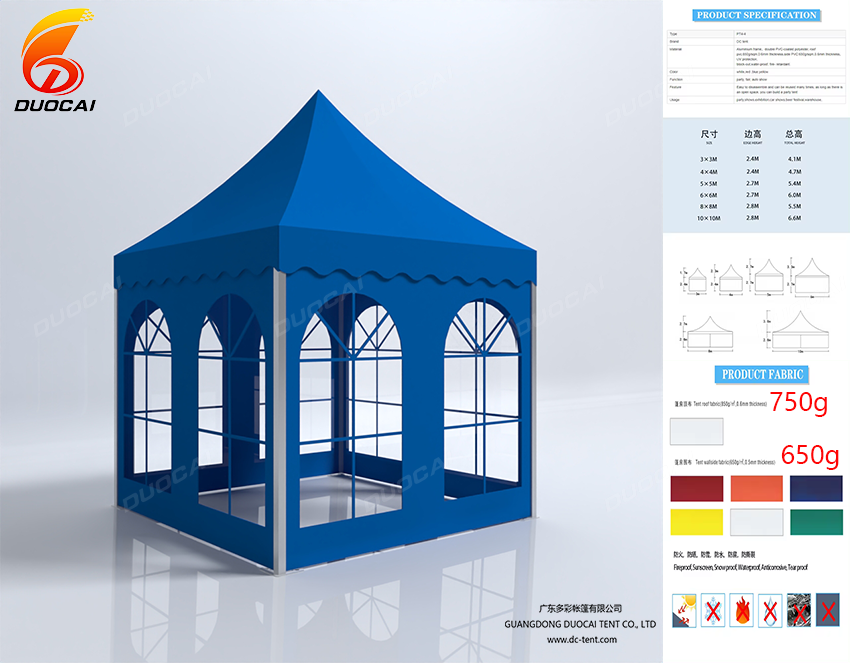

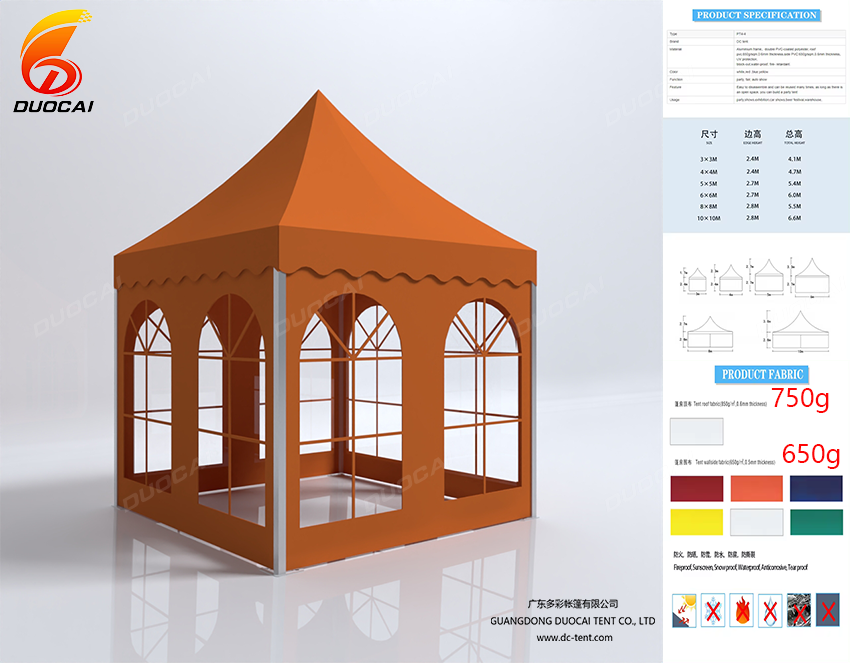

Aluminium pagoda big tent series size of 3×3M, 4×4M, 5×5M and 6×6M are 2.5M side height, with a three-slot 65×65×2.5MM aluminum alloy tube to do the stent. 8×8M and 10×10M conical top account, the standard side height is 3M, with four slots of 121×68×3MM aluminum alloy tube bracket, wind speed of 80 km/h (wind load of 0.3 kN / Square meter).
There are a variety of configurations available for the tents, such as glass walls, glass doors, wooden floors, anchor bolts and ceiling inserts.
Q: What size tent is necessary for your special event?
A: A person must first determine tent usage. If a tent is being used for dining purposes and round tables are being used allow 10-12 square feet per person. If banquet style tables are being used allow 8-10 square feet per person.If the purpose is for cocktail service allow five to six square feet per person. Contact us for all your specific questions and more information on tent types.
Q: Can you print our logos on tent?
A: Yes.Customized logos can be print on the tent fabric according to your requirements.
Q: Is that factory price?
A: Yes.We assure you all prices are based on factory.
Q: Does your tent be able to install repeatedly?
A: Our tents can be assembled and dismantled and repeatedly with small transportation size.
Q: What documents are available?
A: A full range documents including structural drawings,packing list,installation manual can be provided.Moreover,customs declaration is provided.We provide one-stop service for you.
Q: Has your tent product been certified?
A: Yes. Our tent product has passed the engineering tests. Besides, the PVC fabric used for roof covers and sidewalls has passed the fire tests and the flame retardant test base on the standard of German.
Q: How long is the warranty period?
A: Guarantee one year. During the warranty period, we shall repair or replace the damaged part accordingly.
