Six key points for purchasing heavy-duty full-cassete retractable awnings
In the field of outdoor sunshade, heavy-duty full-cassete retractable awnings have become the first choice for large scenes such as villa courtyards and commercial spaces due to their high load-bearing capacity, durability and aesthetics. However, its complex structure and high price require consumers to master key purchasing skills. This article will deeply analyze the key points of purchase from six dimensions to help you make accurate decisions.
1. Load-bearing structure and material selection: the cornerstone of safety
1. **Frame material**
- **Aluminum alloy**: It is recommended to use 6063-T5 aviation-grade aluminum alloy, with a tensile strength of more than 245MPa, and the surface must be anodized to improve weather resistance.
- **Steel structure**: For scenes with a span of more than 8 meters, it is recommended to use Q235 carbon steel square tubes with a wall thickness of not less than 2.5mm, and triple anti-rust coating (galvanized + epoxy primer + fluorocarbon topcoat) is required.
2. **Mechanical support system**
Preferably choose a hyperbolic linkage structure, with a support arm tube with a diameter of ≥45mm, which can withstand level 8 wind (wind speed 20m/s). Special attention should be paid to whether the 304 stainless steel bearings at the hinge are equipped with an anti-drop buckle design.
2. Full cassete cassete: details determine the service life
1. **cassete sealing**
Adopt an integrated die-cast aluminum cassete, and EPDM rubber sealing strips should be configured at the joints to achieve IP54 protection level. High-quality products will have a water guide groove inside the cassete to prevent rainwater from flowing back.
2. **Internal anti-collision design**
The cloth winding shaft should be equipped with a polymer nylon protective sleeve to prevent direct friction between metal and cloth. It is recommended to choose a guide rail system with a spring buffer device to reduce mechanical impact during retraction and release.
3. Drive system: balance between intelligence and stability
1. **Motor performance parameters**

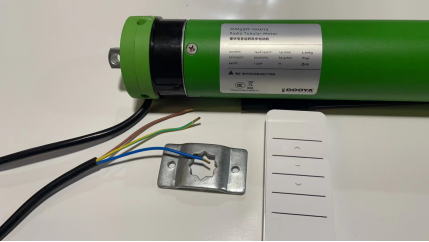

The DC brushless motor must have a torque of ≥50N·m and be equipped with an overload protection and temperature control module. Reference brands: German Somfy (suitable for 5-8m tents), domestic Duya DY-45S (cost-effective choice).
2. **Control method**
High-end models should support APP control + wind, light and rain sensor linkage, and automatically retract when the wind speed exceeds 15m/s. It is recommended to choose an emergency control cassete with physical buttons to ensure normal operation during power outages.
IV. Sunshade fabric: dual considerations of function and aesthetics
1. **Technical parameter standards**
- Anti-ultraviolet: Choose UPF50+ certified Solution Dyed acrylic, color fastness reaches UNE-EN ISO 105-B04 standard
- Waterproof performance: surface tension needs to be >70dyn/cm (refer to Swiss Clariant water-blocking agent treatment process)
2. **Structural innovation**
Imported original hydraulic acrylic fabric (such as Spanish Sauledar, CITEL), color fastness can reach 10 years.
5. Installation adaptability: Avoid 90% of after-sales problems
1. **Load calculation**
Use the European standard EN13561 formula: W=(q×A×C)/1000
(q is the wind pressure coefficient, A is the projected area, and C is the shape coefficient)
It is recommended to reserve a 20% safety margin, and the concrete foundation depth must be >400mm.
2. **Intelligent drainage system**
The water-guiding guide rail design is preferred, and with a drainage slope of 5% inclination, a drainage efficiency of 30L per minute can be achieved during heavy rain.
6. Service guarantee system: the key to hidden costs
1. **Interpretation of warranty terms**
Be wary of the "whole machine warranty" word game, and it is necessary to clarify the graded warranty of 3 years for motors and 2 years for structural parts.
2. **After-sales response standard**
High-quality brands should promise 48-hour fault response.
Conclusion
When purchasing heavy-duty full-cassete awnings, the principle of "structure takes precedence over appearance, safety takes precedence over price" should be followed. Consumers are advised to bring architectural drawings to the merchants for technical docking, and if necessary, they can ask a third-party testing agency to issue a load-bearing verification report. Only through systematic technical parameter comparison and service evaluation can the ultimate goal of one-time investment and ten years of worry-free use be achieved.
